Gable Box Auto Bottom

Gable Auto Bottom: Gable Top, Base Forms Instantly

A gable box auto bottom is a folding carton with a raised gable-style top and a pre-glued automatic base. When the flat carton is opened, the connected bottom panels move into position, so packers do not have to manually assemble the base flap by flap.

The structure suits products that benefit from a distinctive handled pack but also need efficient carton erection. It forms part of our wider packaging box styles library, where gable, locking-bottom, tray and retail structures can be compared by function.

When Is an Auto Bottom Gable Box a Good Choice?

This format is most useful when the carton will be packed repeatedly and reducing erection steps can improve workflow.

Typical applications include:

• Gift and promotional sets
• Confectionery and bakery products
• Cosmetics and personal care
• Small retail products
• Party and event packs
• Product samples
• Subscription or presentation sets
• Lightweight accessories

For food-related uses, the board, coatings, inks and any internal components should be specified according to the actual food-contact conditions.

Auto Bottom Packaging with Pre-Glued Base

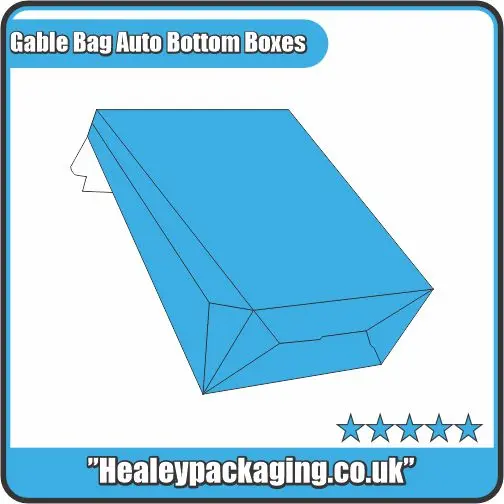

The bottom panels are folded and glued during manufacture. The finished carton is still supplied flat, but opening the body causes the connected base panels to move into their erected position. This gives packers a ready-formed base without completing a manual locking sequence for every carton.

Where packing quantities are smaller and an automatic base is unnecessary, a tuck end gable bag offers a related gable format with a manually assembled closure.

Gable Box Auto Bottom vs Gable Bag Auto Bottom

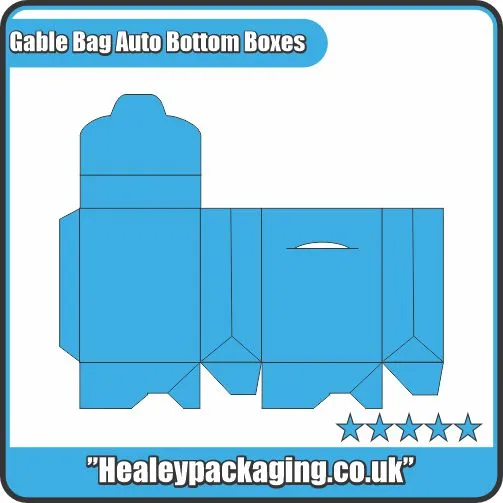

These names describe closely related structures, so the exact dieline matters more than the terminology alone. A gable bag auto bottom also combines gable-style presentation with an automatic base. Differences may lie in the top-panel arrangement, handle geometry, proportions or intended presentation.

When comparing the two, check the dielines rather than selecting by product name. The best structure is the one that fits the product, loading method and required carrying arrangement.

What Should You Check Around the Gable Top?

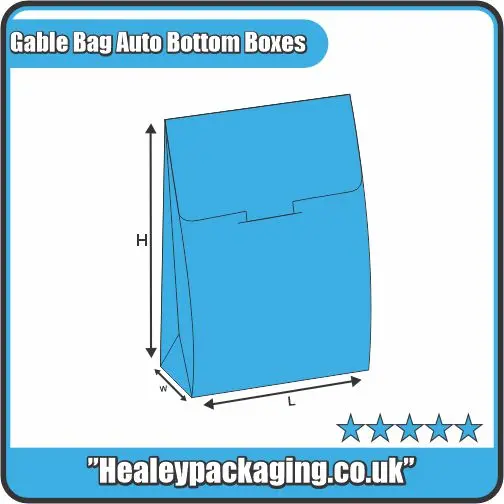

The upper section affects both usable internal space and carrying performance. Sloping panels can reduce available room near the top, so the external carton height should not be treated as fully usable product height.

Before approving dimensions, check:

• Maximum product height
• Required headspace
• Handle opening and hand clearance
• Packed product weight
• Board around the handle
• Product balance when carried
• Loading direction

For products that also need hook or peg merchandising, gable bag auto bottom with hanger adds a dedicated hanging feature to the gable and automatic-bottom combination.

Is an Auto Bottom Suitable for Heavier Products?

An automatic bottom can provide a practical load-bearing base, but the closure name alone does not determine how much weight a carton can safely carry.

Performance depends on carton dimensions, board grade, product weight, load distribution and handling conditions. The handle area also needs to support the same packed load when the box is carried.

For applications where greater bottom coverage is the priority, full flap auto bottom boxes use overlapping base panels and are worth comparing for suitable products. A production sample should be packed and carry-tested where weight is a significant design factor.
