Gable Bag Auto Bottom with Hanger

Gable Bag Auto Hanger: Pack Quick, Hang Ready

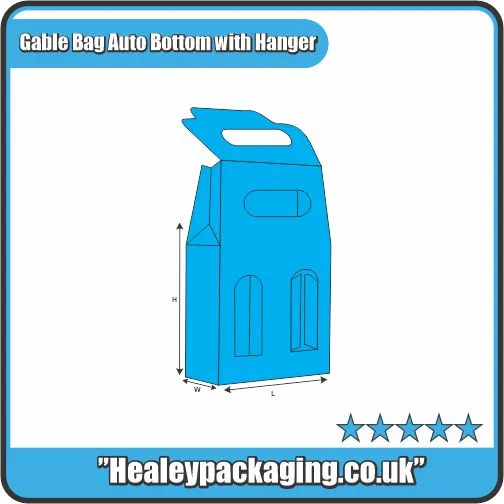

A gable bag auto bottom with hanger is a folding carton that combines three structural features: a gable-style top, a pre-glued automatic base and an extended section for hanging the pack on retail hooks or peg displays.

This makes the format useful when the same package needs to pack quickly, remain portable and support hanging merchandising. It sits within our wider packaging box styles collection of gable, hanger and automatic-bottom structures.

When Should You Choose This Structure?

This format is most relevant when a standard gable carton provides the right presentation but the product also needs hook-based display.

Potential applications include:

• Small gift sets
• Cosmetics and personal care products
• Craft and hobby products
• Accessories
• Promotional packs
• Small household goods
• Confectionery packs
• Event and seasonal products

The product’s packed weight is important because the carton must perform both when carried and when suspended from its hanger.

If hanging display is unnecessary, a gable bag auto bottom provides the related gable and automatic-base construction without the additional hanger feature.

How Does the Auto Bottom Work?

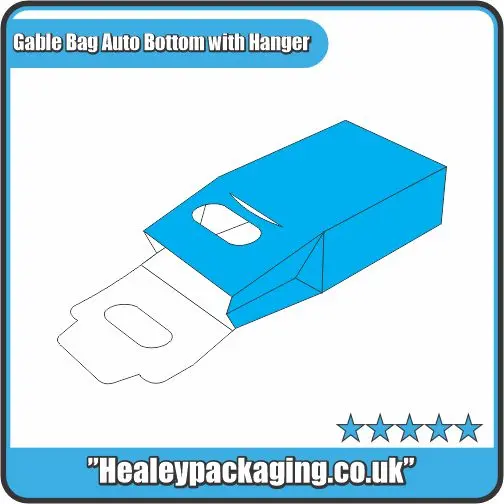

The bottom panels are folded and glued during manufacture. When the flat carton is opened, these connected panels move into their erected position and form the base.

This avoids manually interlocking several bottom flaps for every pack. The benefit becomes more noticeable on repeat or higher-volume packing runs where carton erection is a frequent task.

For products that need hanging presentation without the gable profile, five panel hanger auto bottom boxes combine a pre-glued base with an extended fifth-panel hanger in a more conventional carton format.

What Does the Hanger Add to a Gable Box?

The hanger allows the package to be suspended from compatible retail fixtures instead of relying entirely on shelf or countertop space.

Its design should account for:

• Hanger-hole or Euro-slot dimensions
• Packed product weight
• Board around the aperture
• Position of the hanging point
• Product centre of gravity
• Retail hook dimensions
• Clearance between neighbouring packs

A hanger that is positioned poorly can cause the finished carton to lean or rotate on the fixture. Sampling the pack with the actual product is therefore useful before production.

Gable Hanger vs Five Panel Hanger

Both structures support hanging retail presentation, but they create different pack formats.

A five panel hanger uses an extended panel above a conventional carton body. A gable bag structure has the characteristic raised top and bag-like presentation, giving it a different opening and carrying format.

For lighter products where an automatic base is not required, custom five panel hanger boxes offer a simpler hanging-carton alternative.

The right structure depends on whether carrying convenience, gable presentation, packing speed or a conventional retail carton is the main priority.

What Should Be Checked Before Production?

This carton has several functional areas, so specifications should be based on the finished packed product rather than dimensions alone.

Check:

• Product length, width and height
• Total packed weight
• Base load
• Handle comfort and clearance
• Hanger strength and position
• Required headspace
• Loading direction
• Retail fixture dimensions
• Need for an insert or divider

For multi-item packs, custom fence partitions may help separate products where the internal dimensions allow an appropriate cell layout.
