Tuck End Auto Bottom

Tuck End Auto Bottom: Fast Base, Simple Top Access

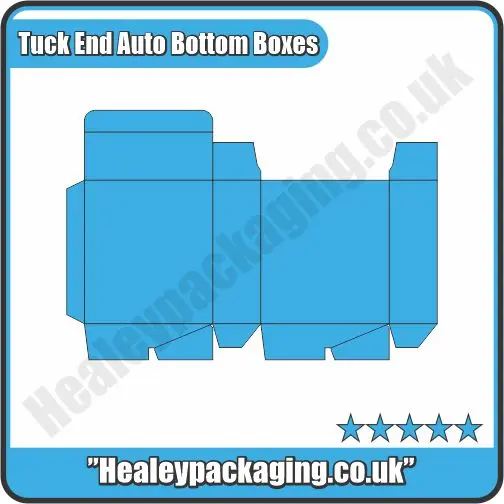

A tuck end auto bottom is a folding carton with a tuck closure at the top and a pre-glued automatic base. When the flat carton is opened, the connected bottom panels move into position, creating a ready-to-load base without requiring the packer to manually interlock several flaps.

This structure is particularly useful when packing speed matters but the product still needs a conventional carton format with straightforward top access. It can be compared with other automatic and locking constructions in our packaging box styles library.

When Should You Choose a Tuck End Auto Bottom?

This style makes sense for products that benefit from quick carton erection and more bottom support than a basic tuck-end closure may provide.

Typical applications include:

• Cosmetics and skincare
• Bottles and jars
• Candles
• Personal care products
• Small electronics
• Household goods
• Confectionery
• Retail accessories

It is especially relevant for repeat packing runs where manually forming the bottom of every carton adds unnecessary handling time. For lightweight products where an automatic base is not required, straight tuck end boxes provide a simpler folding-carton alternative.

Auto Bottom Tuck Top Boxes with Pre-Glued Base

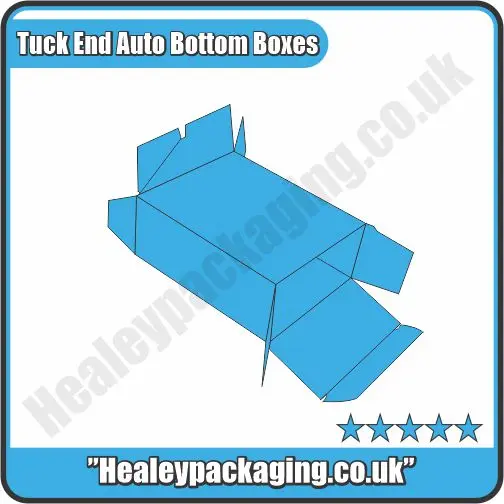

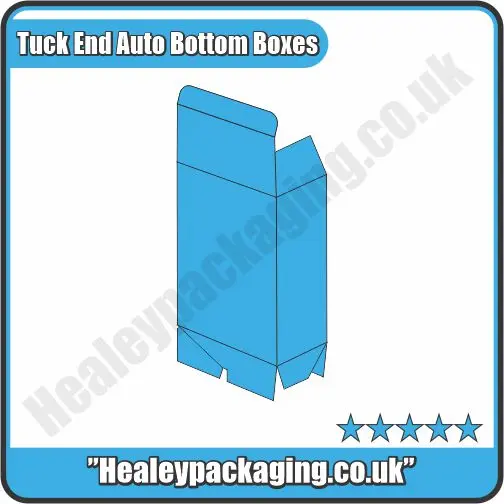

The base panels are folded and glued during manufacture. The finished cartons can still be supplied flat for storage. When an operator opens the carton body, the connected panels move into their erected position and form the bottom. The product can then be loaded through the open top before the tuck flap is closed.

This differs from 1-2-3 bottom tuck top boxes, where the bottom flaps are manually folded and interlocked in sequence during packing. For larger packing runs, removing these repeated assembly steps can make the auto-bottom format more operationally efficient.

Tuck End Auto Bottom vs Full Flap Auto Bottom

Both structures use a pre-glued automatic base, but the bottom configuration is not identical. A standard tuck end auto bottom provides the convenience of automatic erection for many everyday retail applications. Full flap auto bottom boxes use extended overlapping bottom panels to increase board coverage beneath the product.

The full-flap version may therefore be worth considering for denser products or loads requiring greater base coverage. Final suitability still depends on carton dimensions, board grade, product weight and distribution conditions.

Is an Auto Bottom Suitable for Heavy Products?

An automatic base can provide more practical bottom support than some basic folding closures, but “auto bottom” is not a weight rating. Before specifying the structure, consider:

• Total packed weight
• Product dimensions
• Load distribution across the base
• Board grade and thickness
• Carton proportions
• Storage and stacking conditions
• Distribution environment

For bottles or jars packed together, internal separation may also be necessary. Custom fence partitions can create individual cells where products need to be kept apart inside the carton. Sampling with the actual packed product is advisable where bottom performance is critical.

Tuck End Auto Bottom: Check Size, Weight & Loading

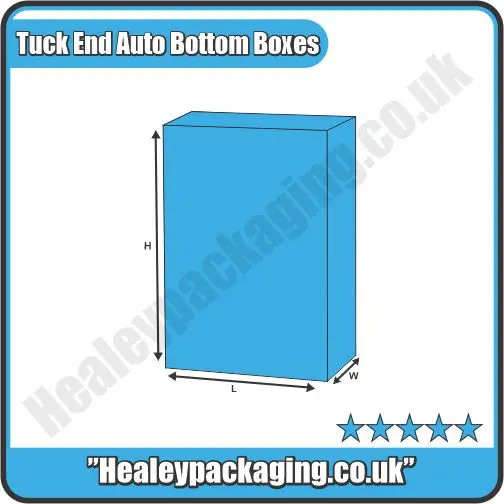

Start with the finished product dimensions and packing process rather than selecting a carton purely by external size. Confirm the required internal dimensions, product weight, loading direction and top clearance. Also consider whether an insert is needed to restrict movement and whether operators will pack the cartons manually or through a more organised filling process.

If product visibility is important, the position of any window should be assessed alongside the structure. Straight tuck boxes with window provide a useful reference for balancing tuck-carton construction with a viewing aperture.
