Custom Auto Lock Bottom Boxes

Auto Lock Bottom: Base Locks in One Movement

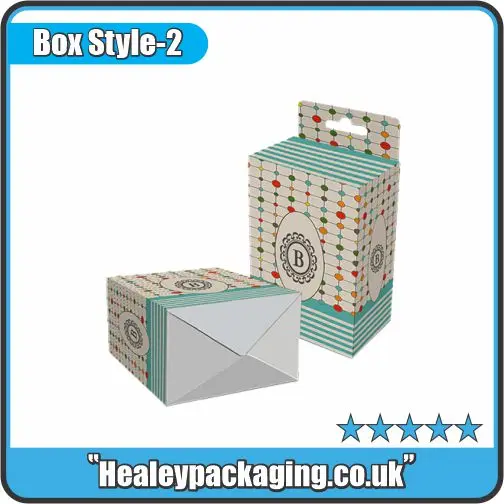

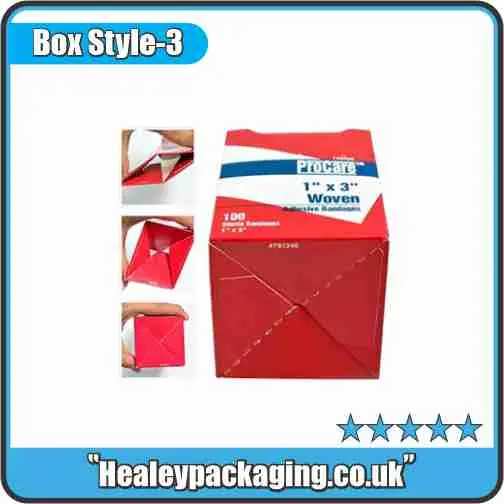

An auto lock bottom box is designed to open and lock at the base in one movement. Unlike standard folding cartons, the bottom flaps do not need to be folded manually one by one. The structure connects automatically as the box is formed.

This is one of the reasons auto-lock bottom boxes are widely used in retail and ecommerce packaging lines where packing speed matters. The structure reduces assembly time, especially during higher volume production runs.

Auto Lock Bottom Corrugated Box for Heavier Products

The bottom structure is the main difference. A standard carton base may loosen under heavier products. Auto lock bottom corrugated box formats are designed to support more weight without the base opening during transit.

This makes them suitable for cosmetics, jars, bottles, supplements and retail products that need additional support underneath. The board grade still matters, but the locking structure itself provides more stability than standard tuck-bottom cartons.

Selected for Functionality, Not Just Appearance

Printed boxes with auto lock bottom structures appear in multiple industries. Cosmetics, food products, supplements, electronics and ecommerce kits.

Some designs use a tuck top auto lock bottom box structure where the top closes with a standard tuck flap while the bottom remains reinforced. The structure is selected mainly for functionality rather than appearance alone. Products that move frequently through packing lines often benefit from this format.

Auto Lock Bottom Box with Accurate Dieline

Auto lock cartons rely heavily on correct folding alignment. If the base panels are even slightly off, the bottom may not lock properly during assembly.

That is why the auto lock bottom box dieline is one of the most important parts of production. The folding sequence and locking tabs need accurate positioning.

How to make auto lock bottom box structures depends on precise die cutting more than extra material thickness. The structure only works properly when the folds align correctly.

Artwork Aligned Across Folds, Branding Clean After Assembly

Branded autolock bottom boxes can still be printed and finished like standard cartons. The locking base does not limit the external print layout. Some brands use full surface printing. Others keep the design simpler depending on the product category.

Box sleeve with auto-lock bottom formats are also used where an outer sleeve adds branding while the internal carton handles structural support. The artwork still needs to aligns correctly across folding areas so branding remains clean after assembly

Critical for Stacking & Transport of Heavy Packs

Custom auto lock bottom boxes are commonly used for products requiring stronger base support during shipping. The structure reduces the risk of the bottom opening under pressure, especially during stacking and transport.

This becomes more important for glass containers, bottled products or heavier retail packs. The carton still needs correct board selection, but the locking base adds another layer of structural reliability.

Auto Lock Cartons Used in Repeat Production Environments

Auto lock cartons are often used in repeat production environments where consistency matters. Every box should open and lock the same way during assembly.

Healey Packaging has worked on thousands of folding carton projects across retail, cosmetic and ecommerce packaging categories. Using consistent dielines helps maintain reliable locking performance across production batches.

This becomes important in automated or high-speed packing environments.

Trusted for Heavy Duty: Healey Packaging

Healey Packaging produces custom auto lock bottom boxes based on product weight, assembly requirements and packaging use.

The locking structure is developed so the base folds and holds correctly during production and shipping.

Printing and die cutting follow once the layout is confirmed. Repeat orders use the same specifications to maintain packaging consistency across batches.
