Action Figure Packaging

Custom Action Figure Packaging for Retail Display

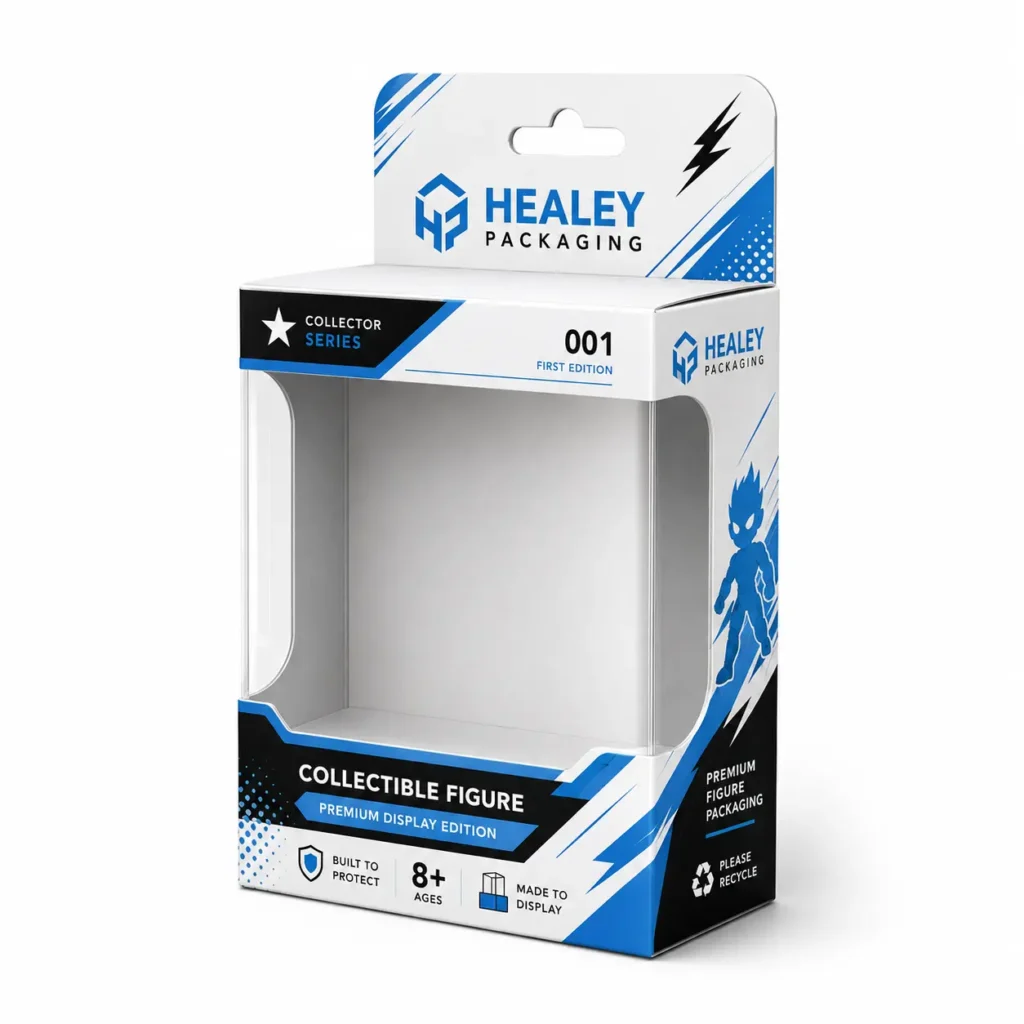

Decide what customers should see while the pack is closed. A front window can reveal the figure’s face, pose and accessories. Leave enough printed panel space for its name and edition details.

An action figure display box also needs to fit its shelf or hanging position. Share shelf dimensions and hanging requirements early. Coordinate the design with your wider printed retail packaging. A closed carton provides more artwork space but keeps the figure hidden until opening.

Hold the Figure and Accessories in Place

A window provides visibility; a correctly fitted insert helps limit movement. Fitted card inserts can separate the figure from loose hands, weapons or a display stand.

Check contact points around painted surfaces and delicate joints. Pressure against a cape or projecting hair can cause a poor fit even when the carton closes. Allow finger or pull access, then check removal with the actual figure.

Size the Pack Around the Figure’s Packed Pose

Measure the full width, height and depth in the intended pose. Include wings, headgear, fixed weapons and any attached stand. Record loose accessories separately in their planned positions.

Advertised height or scale does not establish box size. Distinguish usable internal space from insert dimensions and external carton size. Include hanging tabs in the overall display measurements, and allow clearance for loading without forcing parts or bending joints.

Choose Board and Closures Around the Figure

Coated white paperboard, such as solid bleached sulphate (SBS), provides a smooth surface for printed folding cartons. Kraft offers a brown background that changes how artwork colours appear. Select the grade around the figure’s weight, carton size and window opening.

For larger packs, discuss fine-flute corrugated board. Wrapped rigid board may suit collector gift packs. A tuck closure allows reopening; check that the filled pack stands securely and opens without catching the figure.

Specify the Blister Construction Before Artwork

We offer PET and rPET blister options alongside printed backing cards. Action figure blister packaging uses a formed cavity; flat film behind a carton window serves a different purpose.

Confirm which construction is available for your figure before finalising artwork. Face-seal blisters join a flange to a compatible card; trapped blisters retain it within a card construction.

Record who handles forming, tooling, sealing and packing in the quotation. Heat- or cold-seal arrangements require compatible materials. Decorative lamination alone does not establish sealability.

Keep Print Clear Around Windows and Folds

Use CMYK for full-colour graphics and discuss spot colours before approval. Keep names and edition details readable, with barcodes clear of folds and window edges.

Matt or gloss finishes change the surface appearance. Foil, spot UV and embossing or debossing can highlight selected artwork. Provide graphics you are authorised to reproduce and the product information and market-specific labelling required for your figure.

Review Fit and Artwork Before Production

Our support with packaging design covers structure, dielines and artwork planning. Digital proofs and 3D mock-ups help review presentation. A physical sample made to the proposed dimensions helps assess loading, fit and opening.

Confirm sample availability, costs, materials and whether the insert is included. Specify flat or assembled cartons and separate or pre-fitted inserts. Keep the approved figure version, accessory layout and artwork reference together for repeat orders.

Plan a Separate Outer for Postal Orders

For dispatch, assess the retail pack inside a suitable outer. This should protect its window, printed surfaces and corners alongside the figure. Our corrugated mailer options can form part of that arrangement. Size action figure shipping boxes around the packed carton and cushioning. Select the outer for the filled weight and delivery route; agree any required transit testing separately.
