Seal End Auto Bottom

Seal End Auto Bottom: Pre-Glued Base, Sealed Top

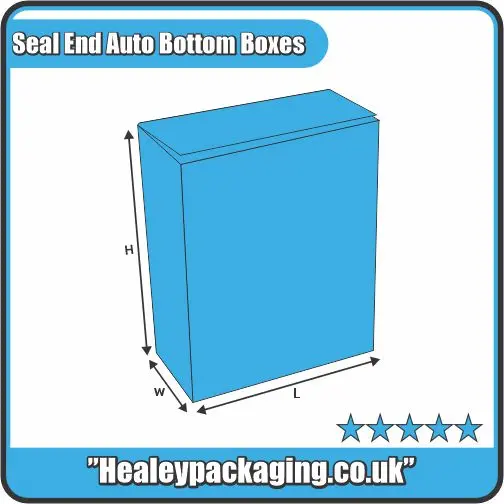

A seal end auto bottom is a folding carton with a pre-glued automatic base and a top end designed to be sealed after filling. The bottom forms as the flat carton is opened, while the upper flaps are closed and secured during the packing process.

This structure combines two practical functions: faster carton erection at the base and a closure intended for secure sealing at the top. It sits alongside other seal-end and automatic-base structures in our packaging box styles library.

Seal End Auto Bottom Boxes for Non-Reclosable Packs

This format makes sense when a tuck closure is not preferred and the packed carton does not need to be repeatedly opened and reclosed.

Potential applications include:

• Dry food and confectionery
• Cosmetics and personal care
• Bottles and jars
• Healthcare and wellness products
• Household goods
• Small components
• Retail multipacks

The auto bottom is particularly useful on repeat packing runs because operators do not have to manually interlock the base of every carton.

For products where both ends are intended to use sealed flap closures rather than an automatic base, custom seal end boxes provide the more conventional seal-end structure.

Auto Bottom Boxes with Pre-Glued Base Construction

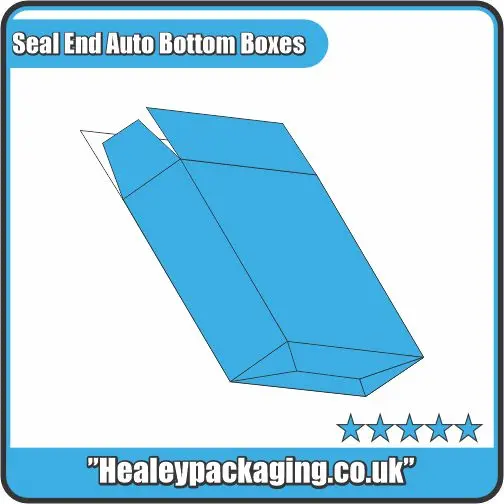

The bottom panels are folded and glued during carton manufacture. Although the base is pre-glued, the cartons can still be supplied collapsed for storage.

When the carton body is opened, the connected bottom panels move into their erected position. The product is then loaded through the open top before the seal-end flaps are closed.

This removes the repeated bottom-folding sequence required by a 1-2-3 bottom tuck top box, which uses manually interlocking base flaps.

How Is the Seal End Closed?

After filling, the top flaps are folded and secured according to the specified sealing method. The exact adhesive and packing process should be matched to the board, coatings, product and production setup.

This creates an important distinction from tuck end auto bottom boxes. A tuck flap is designed to be inserted mechanically into the carton, whereas a seal-end closure is intended to be secured rather than simply tucked into place. If customers need to open and reclose the package frequently, a tuck-based structure may therefore be more practical.

Does a Seal End Make the Box Tamper-Evident?

Not automatically. A sealed flap can make casual opening more difficult than a standard tuck closure, but seal end describes the carton construction rather than guaranteeing a certified tamper-evident system.

If tamper evidence is required, the complete closure specification should be developed and tested for that purpose. This may involve the adhesive pattern, tear features, labels or other security elements appropriate to the product.

Seal End Auto Bottom: Check Weight, Base Load & Sealing

The base and top closure perform different jobs, so both need to be assessed with the actual packed product.

Confirm:

• Product dimensions
• Total packed weight
• Load distribution across the base
• Board grade and thickness
• Required sealing method
• Packing-line process
• Top and bottom clearance
• Need for an insert or divider
• Storage and distribution conditions

For products requiring greater bottom coverage, full flap auto bottom boxes are worth comparing because their extended base flaps provide a different load-support configuration. Sampling is recommended where product weight, sealing performance or packing speed is critical.
