Pen Boxes

Custom Pen Boxes for Retail and Corporate Gifts

Decide how the pen will be presented before choosing a box style. Retail packaging may need clear model details, a barcode and a compact footprint. A corporate gift may put more emphasis on the opening action, logo placement and the view of the pen inside.

A single-pen pack and a two-pen set need different internal layouts. If a gift includes a refill or ink bottle, identify each item at the start. The box must allow for the complete set and the space needed to remove it.

For bulk enquiries, state the number of boxes and the number of pens per box as separate figures. An order for presentation packs is a different brief from an outer carton holding many pens. This keeps the quantity and layout clear from the first enquiry.

Pen Inserts That Allow for Clips and Caps

The insert should support the pen without forcing its clip, cap or barrel against an unsuitable edge. A die-cut card fitting can give a single pen its own position. Separate channels can keep two writing instruments from resting directly against one another.

Foam or fabric-covered fittings can be considered for presentation requirements that need a different interior. A soft lining changes the surface feel, but the fitting still needs to hold the pen in place. Its shape and contact points matter as much as its appearance.

Check removal as well as retention. The user needs room to lift the pen without pulling on the clip. A finger notch or lifting detail may help where the agreed layout requires it; a tight recess alone is not a complete design.

Folding Cartons and Presentation Box Styles

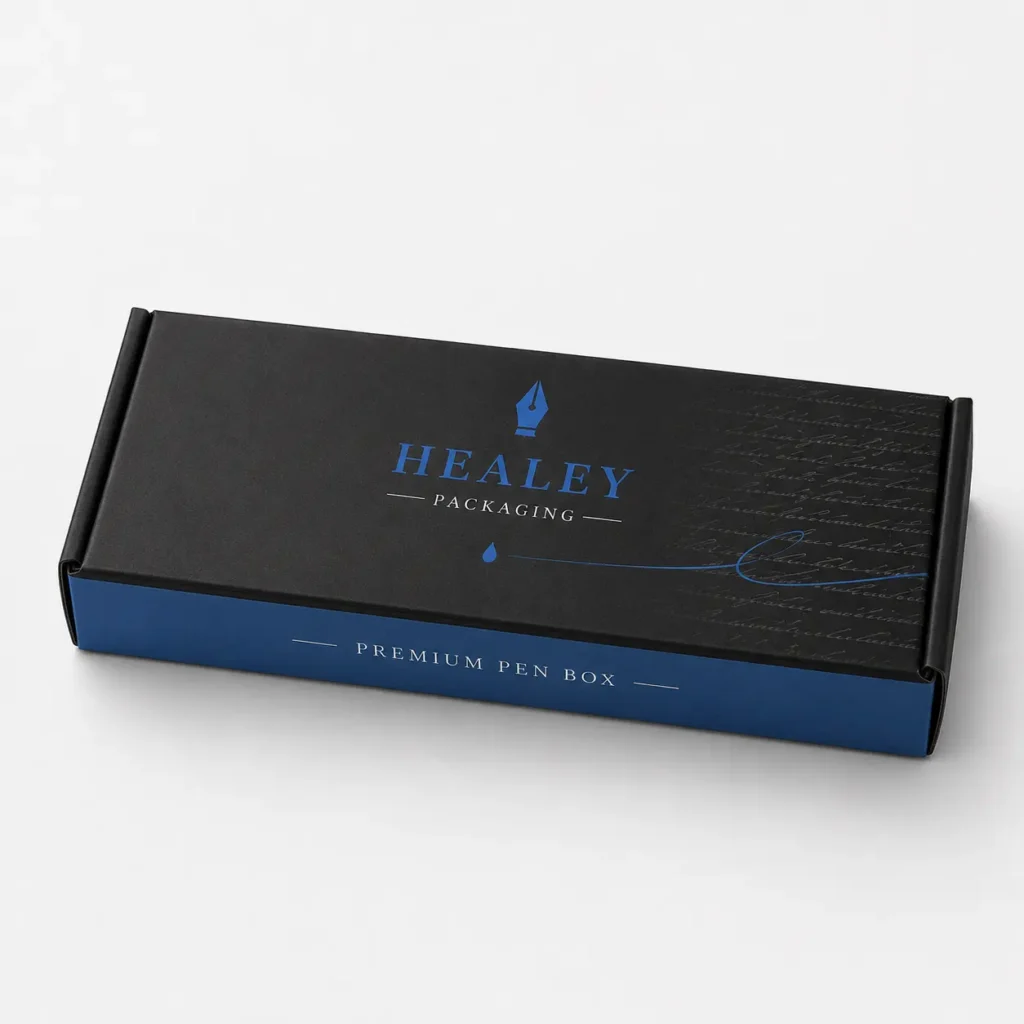

White folding paperboard is a practical starting point for printed retail cartons. Suitable SBS stock can be assessed around the box length, pen weight and insert. Tuck-end formats can be supplied flat for forming and filling when required.

Kraft paperboard offers a brown appearance for cartons or sleeves. Review the artwork on the chosen stock because colours can look different from the same design on white board. Brown colour alone does not establish recycled content or recyclability.

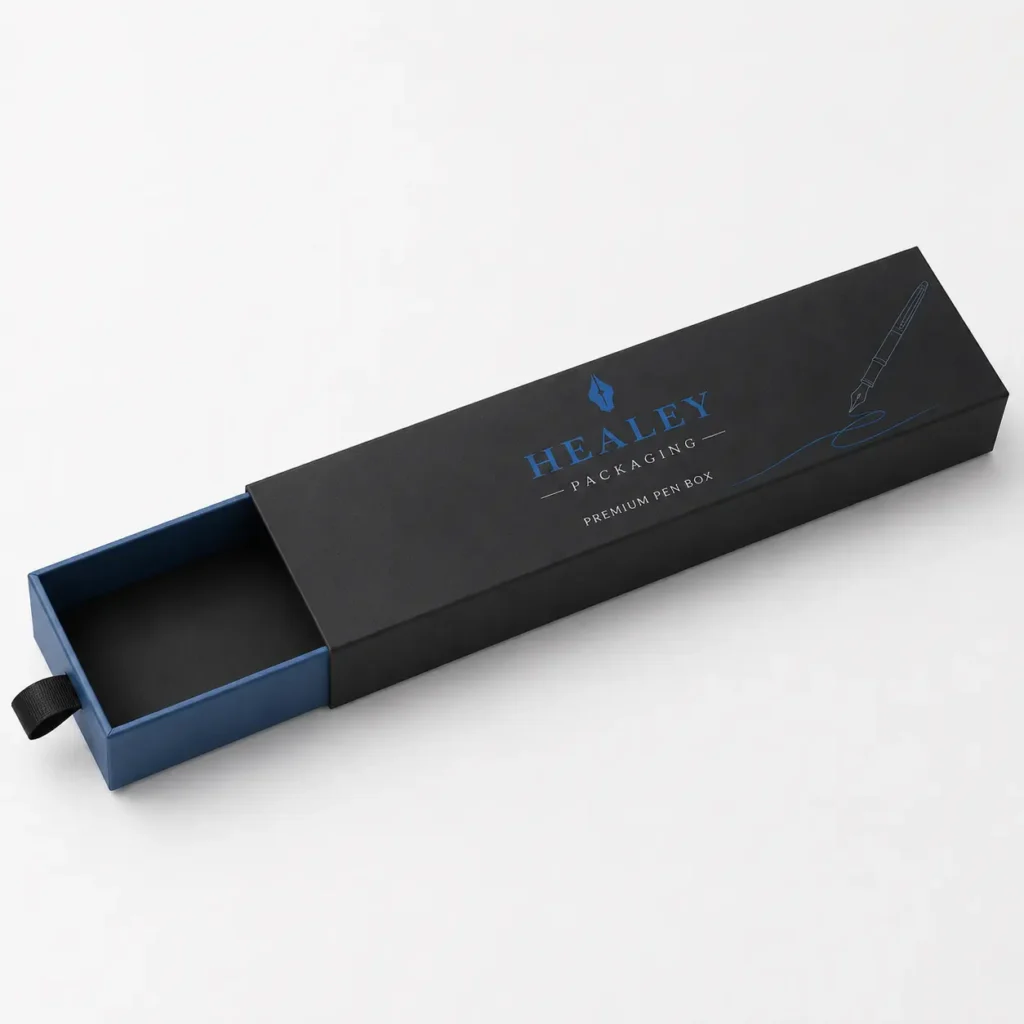

For gifting, consider a sliding tray and sleeve or a two-piece lid-and-base structure. Paper-wrapped rigid board provides a firm presentation format, with textured wrapping papers as an optional surface choice. A hinged magnetic format is another option where an attached lid suits the brief.

Our rigid packaging explains the different formats. Conventional rigid boxes generally arrive assembled, while collapsible versions have their own assembly requirements. Agree the supply state for the selected structure rather than assuming every box folds flat.

Box Dimensions Start With the Capped Pen

Measure the capped pen in millimetres, including its widest diameter and clip projection. Provide the weight and identify any parts that extend beyond the main barrel. For sets, measure every pen and accessory in the intended packed arrangement.

Keep the measurements clearly labelled. Pen dimensions describe the product; the insert recess describes the fitted space around it. Usable internal box dimensions must also accommodate the fitting, while external dimensions include the board, wrap and construction.

There is no single pen box size that fits every writing instrument. Changing a clip, cap profile or insert can affect an otherwise familiar layout. Review these details before reusing a previous box specification or an externally sourced template.

Colour and Finishes for the Box Artwork

CMYK printing suits colourful patterns and product graphics. Pantone references can support specific brand-colour requirements, with the result assessed on the chosen material. Agree whether the box colour comes from printed artwork, coloured stock or a wrapping paper.

Matt and gloss treatments provide different surface appearances. Gold or silver foil can emphasise a logo or initials, while embossing, debossing and Spot UV offer selected raised, recessed or glossy details. Soft-touch treatment is optional; review its appearance and handling marks on an appropriate sample.

Clarify what a silver effect means in your brief: silver-colour print, metallic paper and silver foil produce different results. A viewing window also needs its own layout and material specification. It allows visibility through part of a carton, rather than making the entire box transparent.

Approve Fit, Artwork and Repeat Specifications

Resolve the structure before placing artwork on the final dieline. The dieline guidelines explain cut lines, folds and glue areas. Keep logos and small text clear of these boundaries, including sleeve joins, wrapping turns and hinges where relevant.

Use the artwork guidelines to prepare print-ready files. A digital proof helps review wording and panel placement. An agreed physical sample can help assess the pen fit and opening action; confirm which materials and finishes it represents, with any sampling charges.

Presentation packaging may need a corrugated outer for dispatch. Review the pen, fitting, gift box and shipping pack together. For repeat orders, retain the approved model reference, dimensions, insert layout and artwork version, then flag any changes before production.
